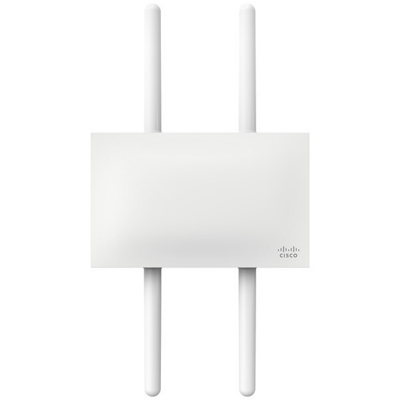

Meraki AP MR84

Meraki AP MR84

Rugged Access Point for High-Density Outdoor Wireless


Price Quote

Have questions?

Meraki’s MR84 access point is ready to handle the toughest environments. Built with IP67 seal rating, it is totally protected against dust and water-proof, tested for shock, vibration, and moisture. Use it indoors, outdoors, from -40°F to 131°F. It also can handle voice- video, and performance-intensive networks.

At a Glance

  • 802.11ac
  • Wave 2
  • 4x4:4-stream 160MHz MU-MIMO
  • Outdoor Access Point
  • External Antenna Connectors

The primary power supply comes from Power-over Ethernet. The MR84 has four radios that all run concurrently:

  • 2.4 GHz 802.11b/g/n client access radio
  • 5 GHz 802.11a/n/ac client access radio
  • 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth radio with Bluetooth Low Energy (BLE) and Beacon support

For efficient transmission of data from a large number of simultaneous users, the MR84 has MU-MIMO support and a theoretical maximum aggregate frame rate of 2.5 Gbps. Furthermore, the MR84 is equipped with two Ethernet uplink, and if the switch infrastructure does not yet support multigigabit, then either it can either be configured for link aggregation or connect wired client devices, like a security camera.

The MR84 features Meraki’s AirMarshal Radio, a third radio dedicated to delivering 24x7 wireless security and RF analytics. This radio constantly monitors the local RF environment and adjusts RF usage to avoid interference. For guest access, the MR84 is equipped with one-click guest isolation so guests can only access the Internet. This access point also has an integrated Layer 7 firewall with mobile device policy management for further protection.

Lastly, when using a Meraki access point, you get one of the easiest to use and deploy access points on the market. All security updates, bug fixes, configurations, and more are handled through a cloud-based interface, the Meraki Dashboard.
